Check Neutral Start System—PowrReverser™ Transmission (If Equipped)

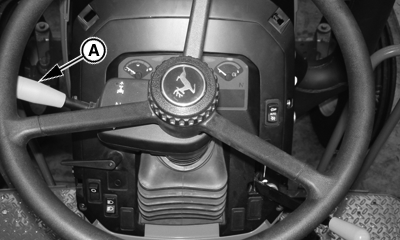

PY15259-UN-30MAY12

PowrReverser Lever Shown

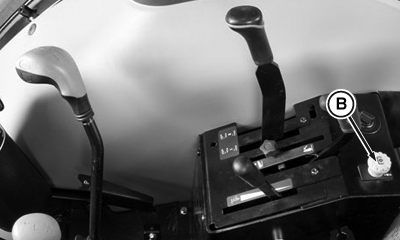

PY18029-UN-22MAR13

Cab Shown

PY18030-UN-22MAR13

OOS Shown

A - PowrReverser Lever

B - PTO Control Switch

Service Interval—250 Hours

Transmission Control

1. Make sure that everyone is clear of tractor.

2. Fully depress clutch and brake pedals.

3. Move PowrReverser lever (A) to FORWARD or REVERSE position.

4. Start engine. If engine starts in either of these positions, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start with lever in NEUTRAL position only.

PTO Switch

1. Fully depress clutch and brake pedals.

2. Cab: Pull PTO lever (B) upward to ENGAGED position.

   OOS: Pull PTO lever (B) outward to ENGAGED position.

3. Start engine. If engine starts in this position, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start with lever in DISENGAGED position only.
