Check Coolant Level

TS281-UN-15APR13

PY18039-UN-22MAR13

Service Interval—Daily / 10 Hours

CAUTION: Explosive release of fluids from pressurized cooling system can cause serious burns.

Shut off engine. Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. Do not operate engine without coolant for even a few minutes.

1. Raise hood.

2. NOTE: Coolant level should be checked when engine is COOL.

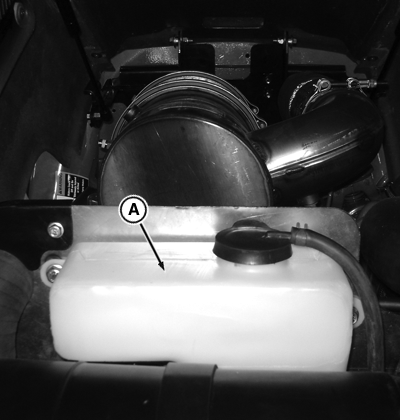

   Check level in coolant reservoir BEFORE starting tractor.

3. If engine is COOL and level is below MIN COLD mark, remove cap and add coolant to reservoir to bring level between MIN and MAX COLD mark.

4. Install cap and lower hood.
