Drain Water and Sediment From Fuel Filters

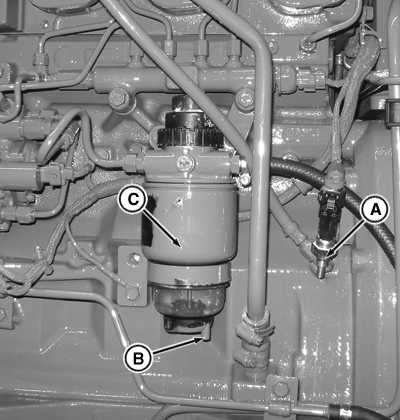

PY18044-UN-22MAR13

Left Hand Side of Engine

A - Wiring Harness Connector

B - Drain Plug

C - Fuel Filter

Service Interval—Daily / 10 Hours

1. NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.

   Disconnect wiring harness connector (A).

2. Connect a small hose to end of drain plug (B).

3. Place a suitable container under drain.

4. Open drain plug (B) to drain moisture and sediment from fuel filter (C).

5. Tighten drain plug (B) when fuel runs clear.

6. Remove drain hose and connect wiring harness connector (A).
