Drain Water and Sediment From Fuel Tank

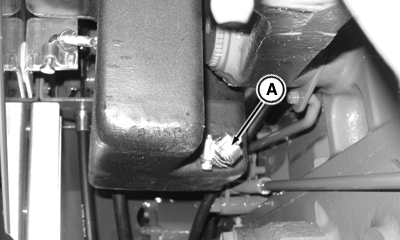

PY18070-UN-26MAR13

OOS Shown

PY18045-UN-22MAR13

CAB Shown

PY18046-UN-22MAR13

Bottom Side of Cab Fuel Tank

A - Fuel Tank Drain Plug

Service Interval— Daily / 10 Hours

1. Remove filler cap.

2. Place suitable container under drain plug (A).

3. Loosen drain plug to drain moisture and sediment from fuel tank.

4. Tighten drain plug when fuel runs clear.

5. Inspect and thoroughly clean all filler cap vents.

6. Inspect rubber seal for cracks or other imperfections. Replace if necessary

7. Install filler cap.
