Replace Fuel Filter / Water Separator

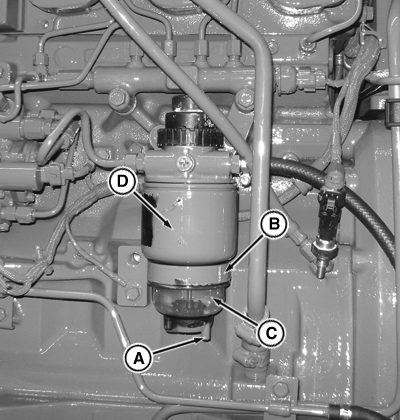

PY18047-UN-22MAR13

A - Drain Port

B - Bottom Retaining Ring

C - Water Separator Bowl

D - Fuel Filter

Service Interval—500 Hours

1. Connect a drain line to drain port (A) and place a suitable container under drain.

2. Loosen drain and drain fuel from filter.

3. Loosen bottom retaining ring (B). Remove water separator bowl (C). Disconnect wiring harness.

4. Remove fuel filter (D) and filter seal.

5. Discard old filter. Inspect filter seal for cracks, breaks, or other signs of leaking. Replace as necessary.

6. Clean and dry water separator bowl (C).

7. Install water separator bowl on new primary fuel filter. Tighten retaining ring (B) until it snaps into place. Do not overtighten.

8. Install new primary fuel filter and filter seal to machine. Tighten retaining ring (D) until it snaps into place. Do not overtighten.

9. Connect wiring harness.

10. Bleed fuel system. (See procedure in this section.)
