Remove Battery

Remove Battery (OOS)

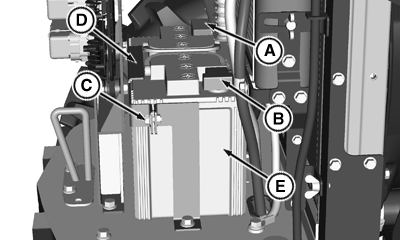

PY18053-UN-14APR14

A - Positive Terminal (+)

B - Negative Terminal (—)

C - Nuts

D - Bracket

E - Battery

1. CAUTION: To avoid sparks, disconnect negative cable (A) first and connect it last.

   Raise hood.

2. Disconnect negative (—) battery cable (B).

3. Disconnect positive (+) battery cable (A).

4. Remove nuts (C) from both side and bracket (D).

5. Remove battery (E) from machine.

Remove Battery (Cab)

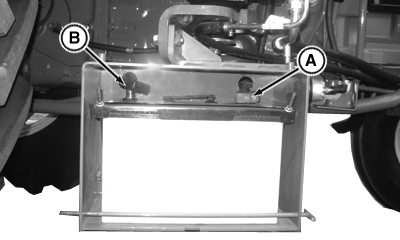

PY16256-UN-18JUL12

A - Positive Terminal (+)

B - Negative Terminal (—)

1. Remove battery cover by loosen the screw on right side.

2. Disconnect negative (—) battery cable (B).

3. Disconnect positive (+) battery cable (A).

4. Loosen nuts securing battery hold-down and rotate the holder down, freeing the battery.

5. Slide the battery forward from the battery tray.
