Service Battery

PY18051-UN-14APR14

OOS

PY16256-UN-18JUL12

CAB

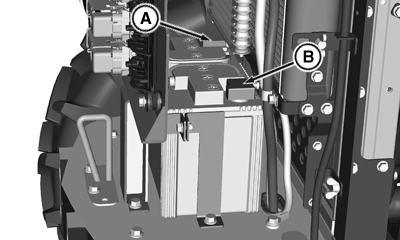

A - Positive (+) Battery Terminal

B - Negative (—) Battery Terminal

1. Keep battery clean by wiping with a damp cloth. Keep terminals (A and B) clean and tight. To remove any corrosion, wash terminals with a solution of four parts water to one part baking soda.

2. CAUTION: To avoid sparks, disconnect negative (ground) cable first and connect it last.

   Keep battery fully charged, especially during cold weather. If a battery charger is connected, attach positive cable to the positive (+) battery terminal (A). Connect the negative (-) battery charger cable to a good ground on tractor frame.

3. Coat terminals with a small amount of grease.
