Access Fuses and Relays

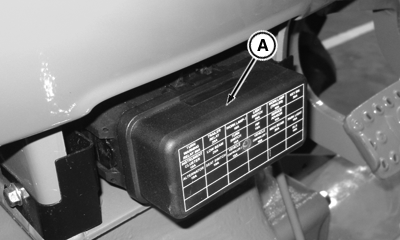

PY18054-UN-22MAR13
OOS Fuse Box Location

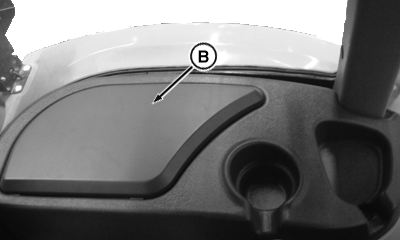

PY16262-UN-19JUL12
Cab Fuse Box Location
A - Fuse Box Cover (OOS)
B - Fuse Box Cover (Cab)
- OOS — Pinch tabs and pull off cover (A).
- Cab — Pry off cover (B).
To remove fuse box cover:
|
Fuse Rating |
Color |
|---|---|
|
5 Amp |
Orange |
|
10 Amp |
Red |
|
15 Amp |
Blue |
|
20 Amp |
Yellow |
|
30 Amp |
Green |
IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur.
If original size fuse will not carry electrical load and continues to blow contact your John Deere dealer.
|
SD74272,00004E6-19-20130318 |
