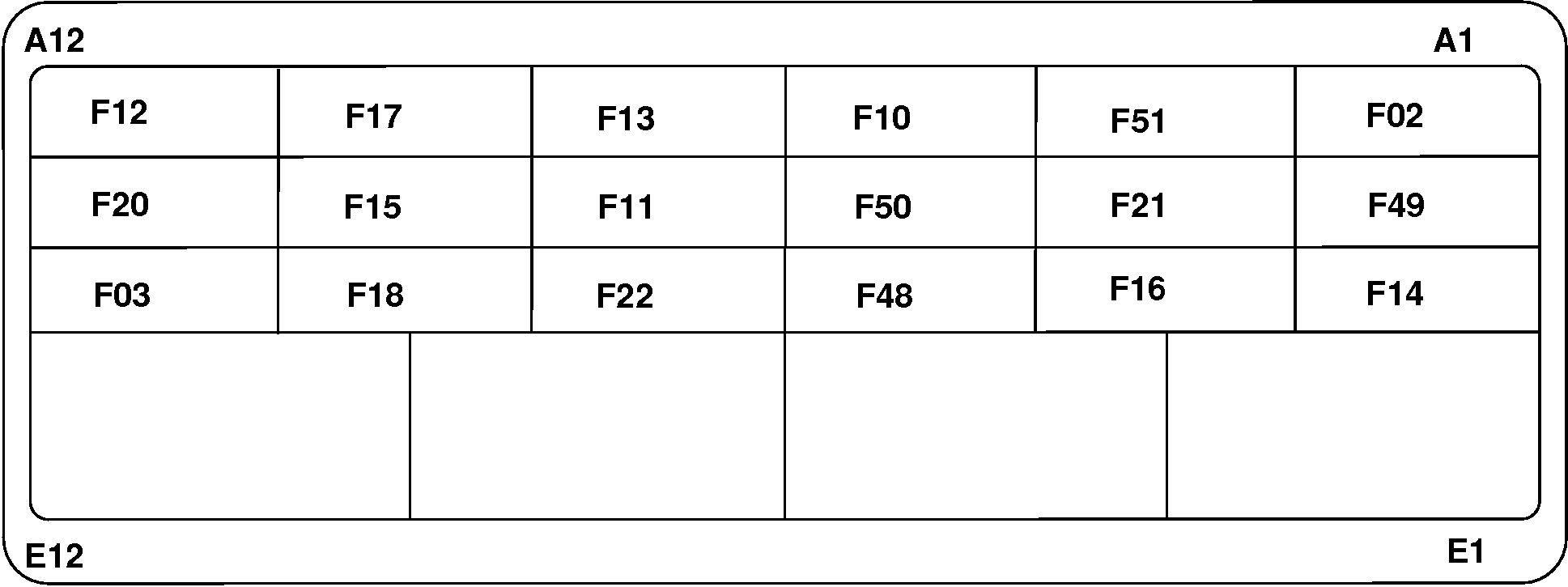

Load Center - 1 Fuses and Relays — OOS (PowrReverser™ Transmission)

PY18055-UN-03APR14

F02 - Key Switch Fuse, 30 Amp

F03 - ELX Power Fuse, 10 Amp

F10 - Light Switch Fuse, 30 Amp

F11 - Turn Signal Light Switch Fuse, 10 Amp

F12 - Turn Warning Relay Fuse, 30 Amp

F13 - Work Lamp - 1 Fuse, 10 Amp

F14 - Tail Lamp Fuse, 5 Amp

F15 - Low Beam Fuse, 20 Amp

F16 - High Beam Fuse, 20 Amp

F17 - Trailer Power Relay Fuse, 20 Amp

F18 - Seat Switch Fuse, 10 Amp

F20 - Instrument Cluster Fuse, 10 Amp

F21 - Service Advisor Fuse, 10 Amp

F22 - Vehicle Control II Fuse, 10 Amp

F48 - Vehicle Control I Fuse, 10 Amp

F49 - Work Lamp (FIK) Fuse, 10 Amp

F50 - ECU Fuse, 20 Amp

F51 - Work Lamp (Trailer) Fuse, 10 Amp
