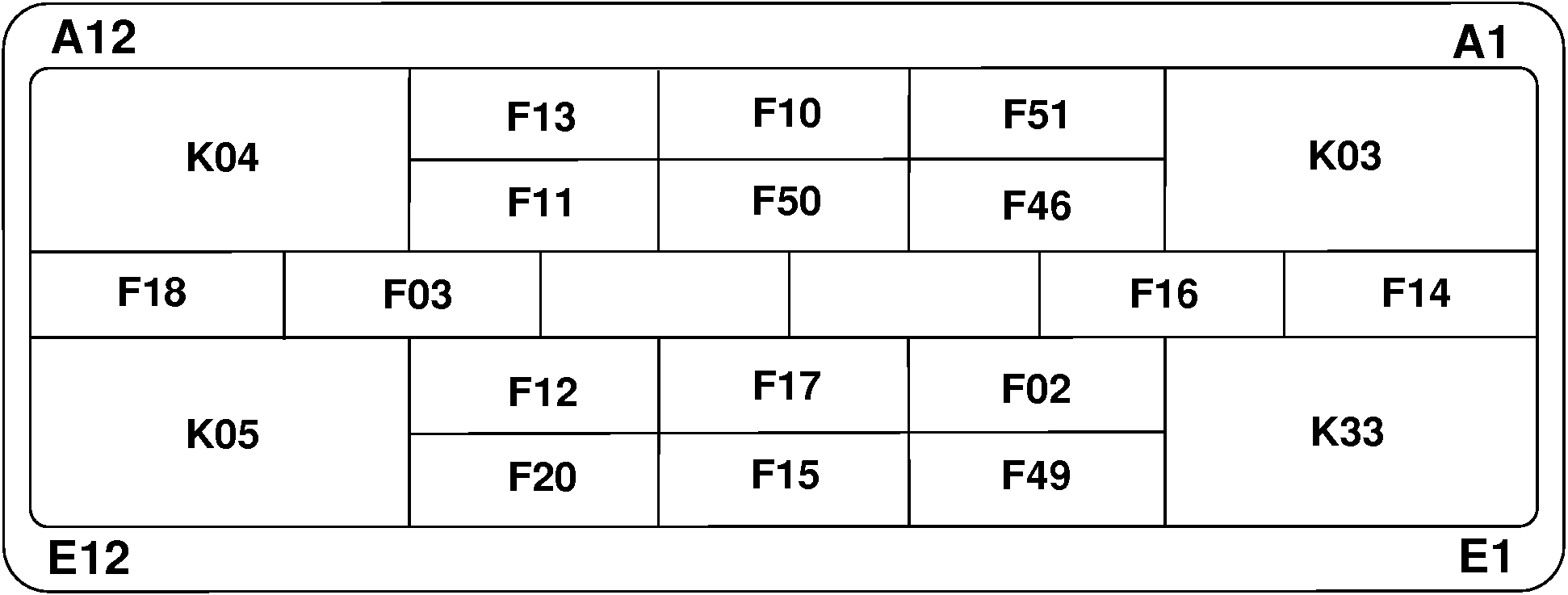

Load Center - Fuses and Relays— OOS (Sync Shuttle Transmission)

PY18057-UN-04APR14

F02 - Key Switch Fuse,30 Amp

F03 - ELX Power Fuse, 10 Amp

F10 - Light Switch Fuse, 30 Amp

F11 - Turn Signal Switch, 10 Amp

F12 - Turn Warning Relay Fuse, 30 Amp

F13 - Work Lamp - 1 Fuse, 10 Amp

F14 - Tail Lamp Fuse, 5 Amp

F15 - Low Beam Fuse, 20 Amp

F16 - High Beam Fuse, 20 Amp

F17 - Trailer Power Relay Fuse, 20 Amp

F18 - Seat Switch Fuse, 10 Amp

F20 - Instrument Cluster Fuse, 10 Amp

F46 - Service Advisor Fuse, 10 Amp

F49 - Work Lamp (FIK) Fuse, 10 Amp

F50 - ECU Power Fuse, 20 Amp

F51 - Work Lamp (Trailer) Fuse, 10 Amp

K03 - Turn Warning Relay

K04 - Left Turn Relay

K05 - Right Turn Relay

K33 - Flash Logic Relay
