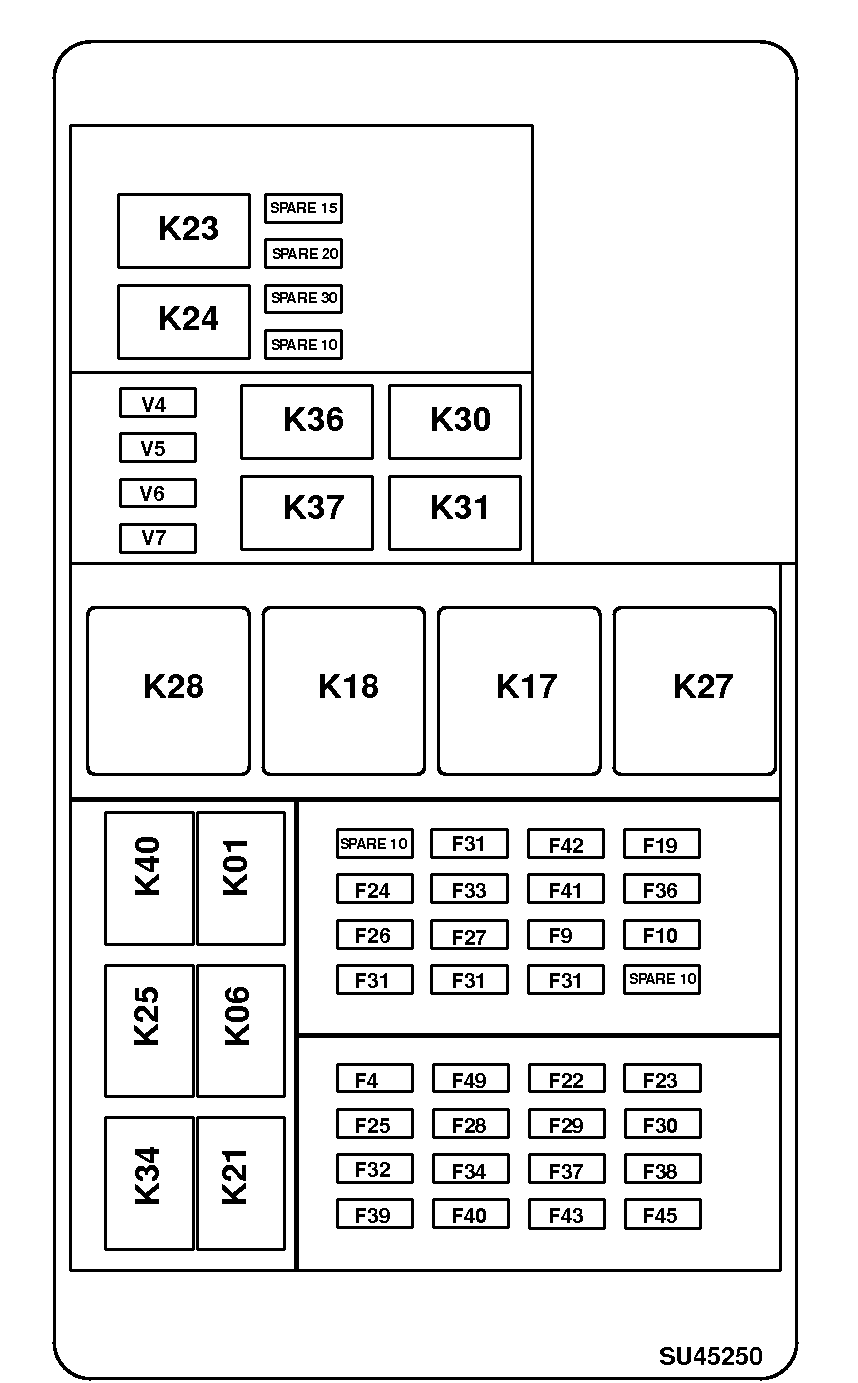

Load Center Fuses and Relays—Cab (PowrReverser™ Transmission)

PY35601-UN-09NOV16

Load Center Fuses for 5058E, 5067E and 5075E Tractors

F9 - EH System Fuse, 15 Amp

F19 - Light Switch Fuse, 20 Amp

F20 - Head light fuse, 15 Amp

F22 - Rear work light, 30 Amp

F23 - Front work Light, 30 Amp

F24 - Turn Signal Fuse, 5 Amp

F25 - Hazard Fuse, 20Amp

F26 - Park light LH, 5 Amp

F27 - Park light RH, 5 Amp

F28 - Brake light, 15 Amp

F29 - Instrument Cluster, 20Amp

F30 - Horn, 10Amp

F31 - EQRL, 20Amp

F32 - Junction Block Fuse, 30 Amp

F33 - Junction Block Battery Fuse, 30 Amp

F34 - Trailer Controller Fuse, 20Amp

F36 - Trailer Flood fuse, 15 Amp

F37 - Right Blower Relay Fuse, 30 Amp

F38 - Left Blower Relay Fuse, 30 Amp

F39 - Wiper Relay Fuse, 30 Amp

F40 - Dome Lamp Switch Fuse, 10 Amp

F41 - Radio Fuse, 10 Amp

F42 - Seat Switch Fuse, 10 Amp

F43 - FCC Fuse, 10 Amp

F44 - Joystick Fuse, 10 Amp

F45 - ECU Power Fuse, 20 Amp

F49 - Beacon Light, 10 Amp

SPARE 10 - Spare Fuse, 10 Amp

SPARE 10 - Spare Fuse, 10 Amp

SPARE 10 - Spare Fuse, 10 Amp

SPARE 15 - Spare Fuse, 15 Amp

SPARE 20 - Spare Fuse, 20 Amp

SPARE 30 - Spare Fuse, 30 Amp

K1 - Neutral Relay

K6 - EH System Relay

K17 - Rear Work Lamp Relay

K21 - ACC Relay

K23 - Left Turn Relay

K24 - Right Turn Relay

K25 - Brake Light Relay

K27 - Trailer Power Relay

K28 - HVAC Relay

K30 - Left Blower Relay

K34 - Wiper Relay

K36 - Not Neutral Relay

K37 - Transmission Enable Relay

K40 - Tail / Clearance Relay

V4 - Diode, Right Turn

V5 - Diode, left Turn

V6 - Diode, AC Clutch

V7 - Diode, EH System
