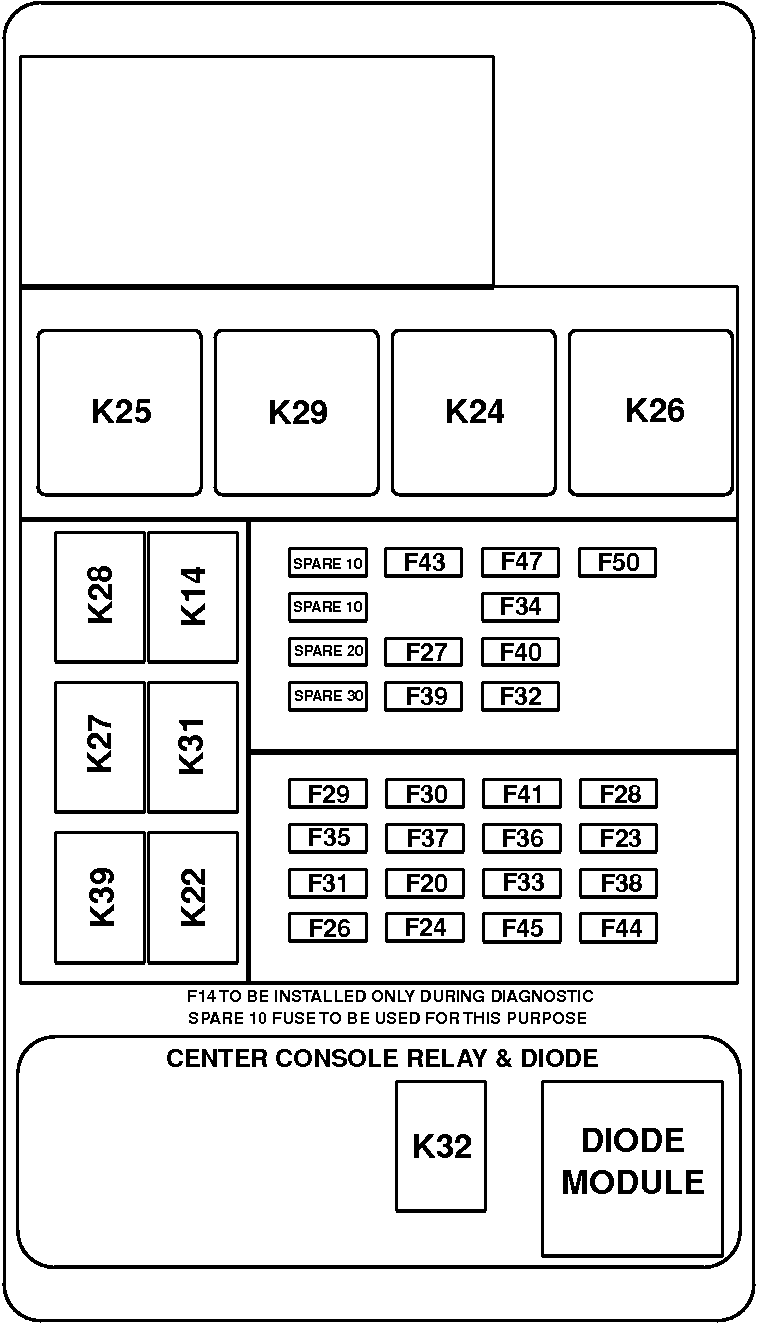

Load Center Fuses and Relays—Cab (Sync Shuttle Transmission)

PY18248-UN-10SEP13

F20 - Instrument Cluster Fuse, 10 Amp

F23 - Turn Signal Light Switch, 10 Amp

F24 - Turn Hazard Relay Fuse, 30 Amp

F26 - Key Switch Fuse, 30 Amp

F27 - Clearence/License Fuse, 10 Amp

F28 - Hi/Low Head Light Relay Fuse, 10 Amp

F29 - Rear Work Lamp Relay Fuse, 30 Amp

F30 - Front Work lamp Relay Fuse, 30 Amp

F31 - Junction Block Fuse, 30 Amp

F32 - Junction Block Fuse, 30 Amp

F33 - Trailer Power Relay Fuse, 20 Amp

F34 - Work Light Fuse, 10 Amp

F35 - HVAC Relay Fuse, 30 Amp

F36 - Left Blower Relay Fuse, 20 Amp

F37 - Front Wiper Relay Fuse, 20 Amp

F38 - Dome Lamp Switch Fuse, 10 Amp

F39 - Radio Fuse, 10 Amp

F40 - Clearence/License Fuse, 10 Amp

F41 - Seat Switch Fuse, 10 Amp

F43 - FCC Fuse, 10 Amp

F44 - Brake Pedal Switch Fuse, 10 Amp

F45 - Light Switch Fuse, 20 Amp

F47 - Fuel Pump Relay Fuse, 10 Amp

F50 - ECU Power Fuse, 20 Amp

SPARE 10 - Spare Fuse, 10 Amp

SPARE 10 - Spare Fuse, 10 Amp

SPARE 20 - Spare Fuse, 20 Amp

SPARE 30 - Spare Fuse, 30 Amp

K14 - Accessory Relay

K22 - Tail / Clearance License Relay

K24 - Front Work Lamp Relay

K25 - Trailer Power Relay

K26 - HVAC Relay

K27 - Left Blower Relay

K28 - Right Blower Relay

K29 - Rear Work Lamp Relay

K31 - Fuel Pump Relay

K32 - Hi/Lo Headlight Relay

K39 - Wiper Relay
