Safety Decals — Cab

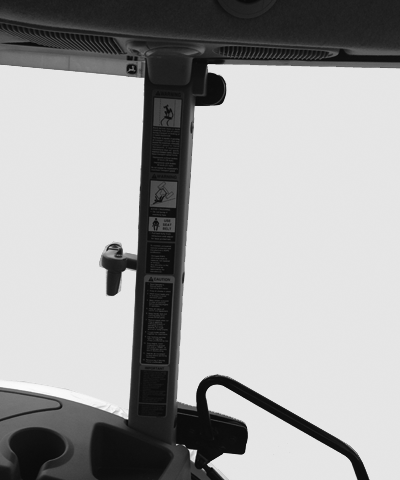

PY20835
PY20835-UN-03SEP14

Inside of the Cab

PY18149
PY18149-UN-10MAY13

P/N: R223236

WARNING:

Avoid serious injury or death resulting from loss of control during transport or braking of a towed implement.

This tractor is capable of operating at transport speeds that may exceed the maximum allowable transport speed for towed implements. If implement manufacturer does not specify maximum transport speed, observe these transport speed limits:

  • Implements without brakes: 32 Km/h (20 mph)
  • Implements with brakes: 40 Km/h (25 mph)

Do not exceed the implement’s maximum transport speed.

AVOID CRUSHING:

  • Do not jump if machine tips.

USE SEAT BELT:

  • Pull belt fully from retractors and adjust for best protection.

To maintain unimpaired operator protection and manufacturer’s ROPS certification:

  • Damaged ROPS structures must be replaced, not repaired or revised.
  • Any alteration to the ROPS must be approved by the manufacturer.

CAUTION:

  1. Read Operator’s Manual before operating this tractor.
  2. Keep all shields in place.
  3. Hitch towed loads only to drawbar to avoid rearward upset.
  4. Make certain everyone is clear of machine before starting engine operation.
  5. Keep all riders off tractor and equipment.
  6. Keep hands, feet and clothing away from power-driven parts.
  7. Reduce speed when turning or applying individual brakes or operating around hazards, on rough ground or steep slopes.
  8. Couple brake pedals together for road travel.
  9. Use flashing warning lights on highway unless prohibited by law.
  10. Stop engine, lower equipment to ground and shift to “PARK” or set brakes securely before dismounting.
  11. Wait for all movement to stop before servicing machinery.
  12. Remove key if leaving tractor unattended.

IMPORTANT:

  1. After starting engine, operate engine at approximately 1200 rpm (no load) for one to two minutes. If temperature is below freezing point, operate engine for two to four minutes (no load).
  2. Start engine immediately if stalled while working to provide turbocharger lubrication.
  3. Before stopping warm engine, idle several minutes under 1000 rpm to cool turbocharger turbine.
  4. After prolonged idle periods, see Operator’s Manual for starting instructions.
  1. Drive train and tire life can be extended by avoiding high loads at travel speeds below 4.0 mph (6.4 Km/h).
  2. Refer to Operator’s manual prior to towing tractor.

SD74272,000054A-19-20140814
