Adjusting Steering Wheel — (If Equipped)

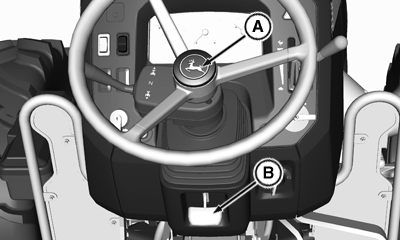

PY18352-UN-17MAR14

A - Height Adjustment Ring

B - Angle Adjustment Lever

Tilt: Lift lever (B) and move steering column to desired angle. Release lever to lock into position.

Wheel Height (Telescoping): Loosen ring (A) and raise or lower steering wheel to desired height. Tighten ring to lock into position.
