Control Lever and Coupler Identification — OOS

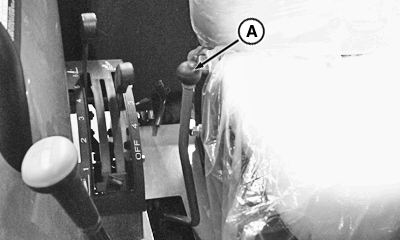

PY18357-UN-10JUN14

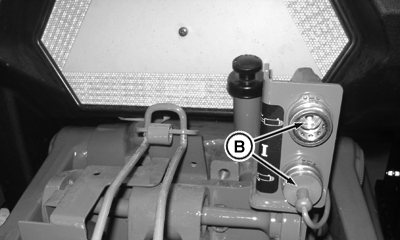

PY18358-UN-01APR14

A - SCV I Lever

B - SCV I Receptacles

Movement of SCV I lever (A) fore/aft operates coupler (No. 1) receptacles (B).

Coupler I has a détented float position when lever (A) is moved in the fully forward direction.

NOTE: SCV II is optional and operation of SCV II is same as SCV I.

The multi-function lever (if equipped) has two basic directions of movement to control oil flow to the mid-mount couplers, located on the side of the tractor.

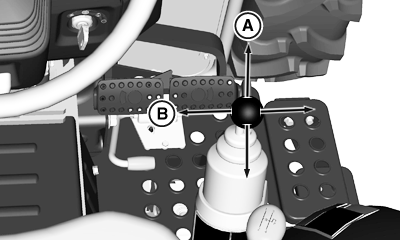

PY17937-UN-31MAR14

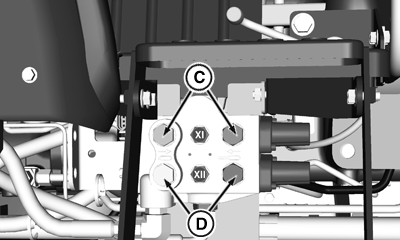

PY17938-UN-31MAR14

A - Forward and Backward—Float

B - Inward and Outward—Regenerative

C - Mid-Mount Coupler I—Float (If Equipped)

D - Mid-Mount Coupler II—Regenerative (If Equipped)

• Forward and backward (A) operates coupler I (C).
• Inward and outward (B) operates coupler II (D).

The multi-function lever detents to a float position when moved fully forward.

The multi-function lever detents to regenerative position when moved fully outward.
