Check Cooling System for Leaks

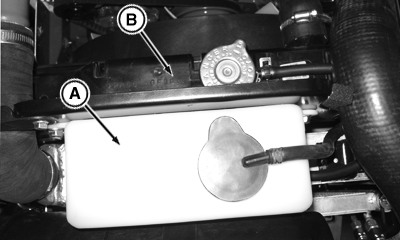

PY18366-UN-03APR14

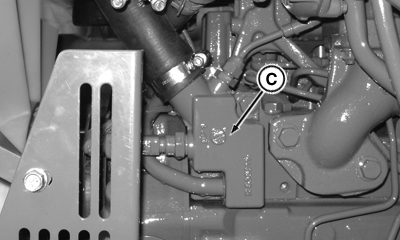

PY18041-UN-02APR14

A - Coolant Reservoir

B - Radiator

C - Thermostat Housing

Service Interval—600 Hours

1. Check around base of radiator (B) for pinholes, cracks or any sign of coolant leakage.

2. Inspect coolant reservoir (A) for holes, cracks or any sign of coolant leakage.

3. Inspect area around thermostat housing (C) for cracks, or any sign of coolant leakage.
