Starter Wiring Connections

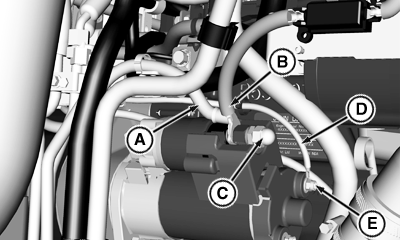

PY18371-UN-07APR14

A - Positive Battery Cable Wiring Harness

B - Alternator Cable

C - Solenoid Post

D - Small White Wire

E - Solenoid Terminal

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

Connect positive battery cable (A) and alternator cable (B) to solenoid post (C). Connect the small white wire (D) to solenoid terminal (E).

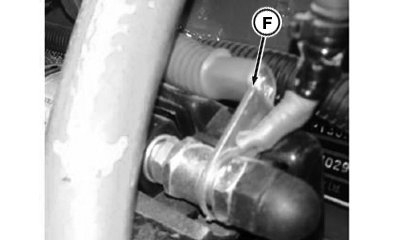

PY20824-UN-04AUG14

F - Battery To Starter Wire Terminal

CAUTION: Maintain the orientation of battery to starter wiring terminal (F) towards engine whenever removed for Service.
