Adjust Hand Throttle Friction

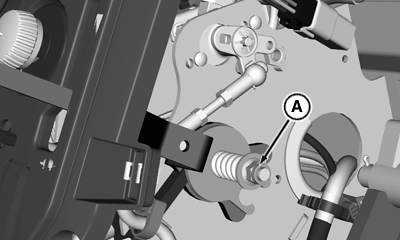

PY18377-UN-14APR14

Under Dashboard

A - Cap Screw and Lock Nut

Adjust spring tension by loosening or tightening cap screw and lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag.

Adjust throttle friction cap screw until specified amount of resistance is measured at throttle lever knob.

Item	Measurement	Specification
Throttle Friction Cap Screw	Resistance	49 N (11 lb. - force)
