Tread Settings—Multi-Position MFWD Wheels

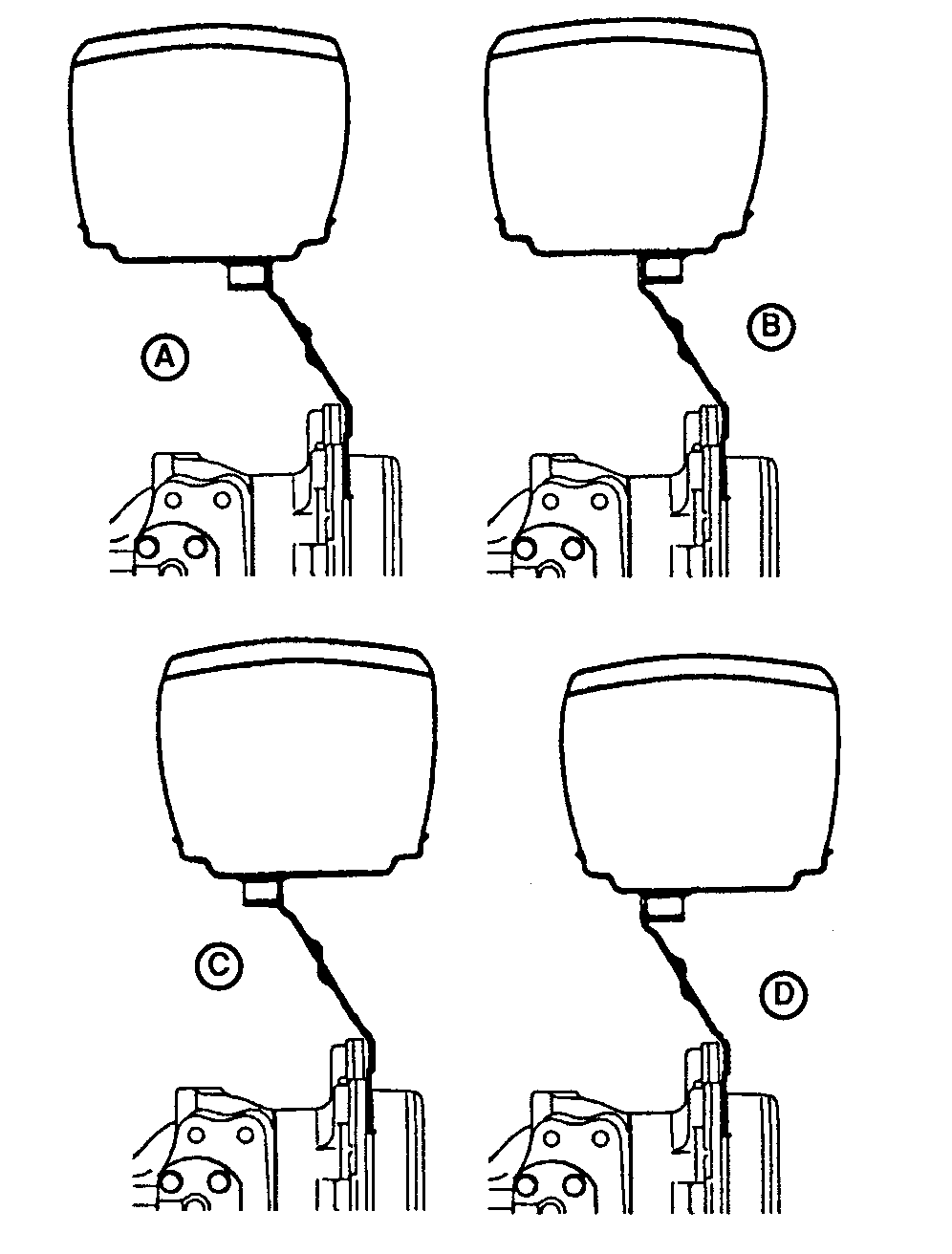

LV601-UN-22APR94

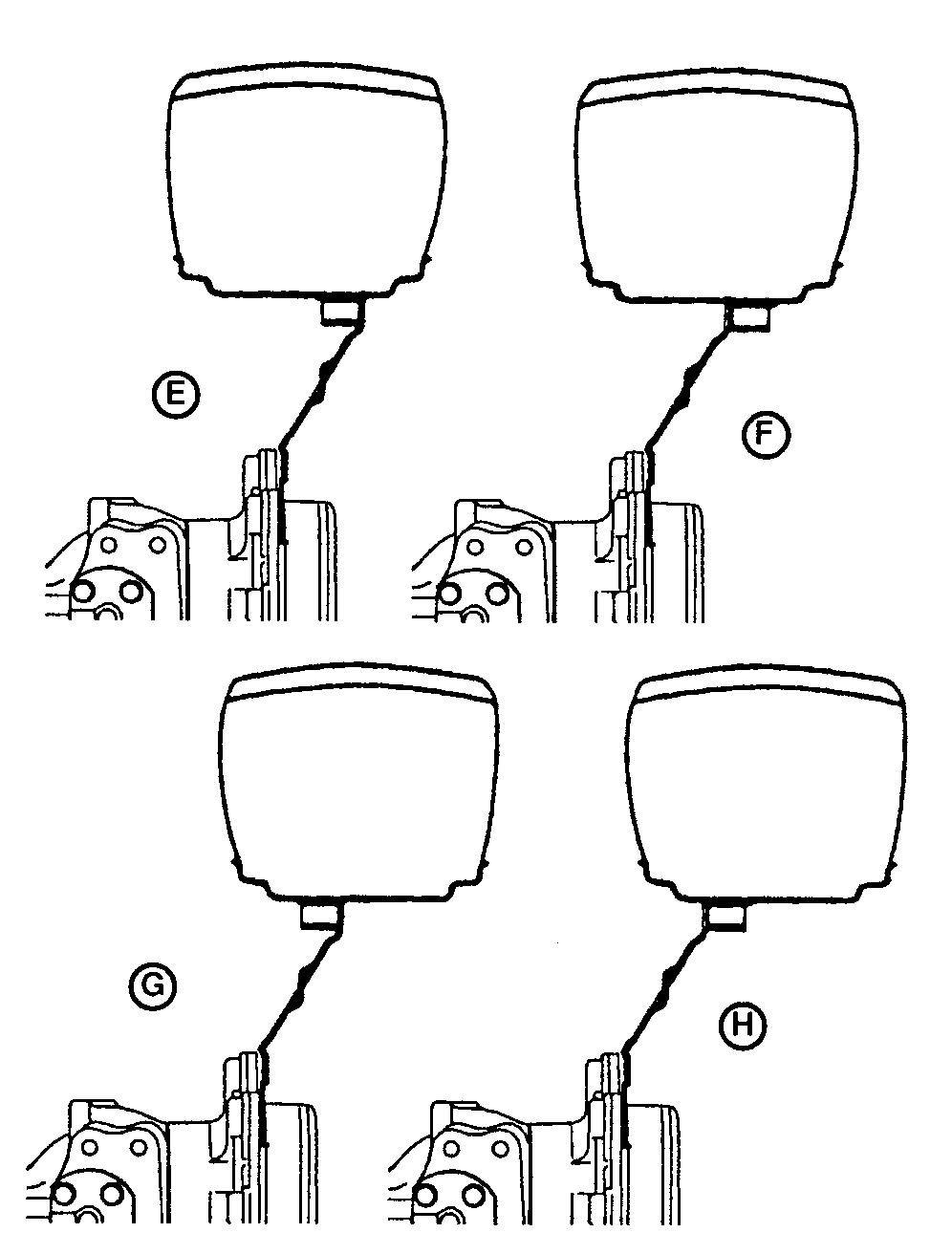

LV602-UN-22APR94

Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. (See Selecting Front Tire Rolling Direction in this section.)

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams. A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

Tread settings are measured at the middle of the tires at axle height..

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
MFWD Wheel Rim-to-Disk Bolts	Torque	245 N˙m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts	Torque	310 N˙m (228 lb-ft)

MULTI-POSITION MFWD WHEELS—TREAD WIDTH (Centerline-to-Centerline)
	Diagram
Tire	A	B	C	D	E	F	G	H
9.5-24 6PR R1	1457 mm (57.4 in.)	1567 mm (61.7 in.)	1548 mm (60.9 in.)	1632 mm (64.3 in.)	1655 mm (65.1 in.)	1778 mm (70 in.)	1749 mm (68.9 in.)	1860 mm (73.2 in.)
9.5-16 6PR R3	INT*	N/A	N/A	N/A	1730 mm (68.1 in.)	N/A	N/A	N/A
12.5/80-18 10PR R4	1531 mm (60.27 in.)	1699 mm (66.88 in)	N/A	N/A	N/A	N/A	N/A	N/A
*Interference (Do not use)
