Lubricate Steering Linkage

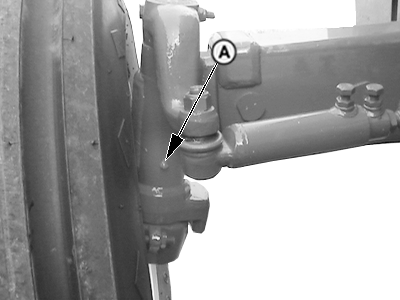

PY4414-UN-31DEC04

2WD Axle

A - Spindle Grease Fitting

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

2WD Axle ( If Equipped )

Apply several shots of grease to steering spindle fittings, on both left and right-hand sides.
