Lubricate Front Axle Pivot Pins

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

PY6524-UN-06NOV06

Right Side of MFWD Axle - DANA

PY6525-UN-06NOV06

Back Side of MFWD Axle - DANA

PY16234-UN-17JUL12

Right Side of 2WD Axle

PY6291-UN-10OCT06

Back Side of Under Front Support

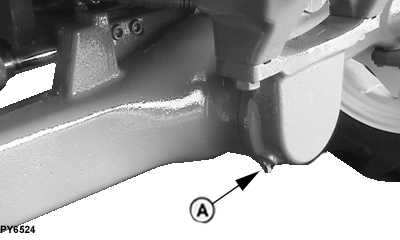

A - MFWD Front Pivot Jerk

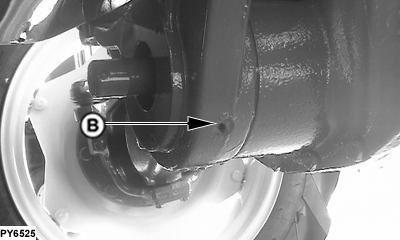

B - MFWD Rear Pivot Jerk

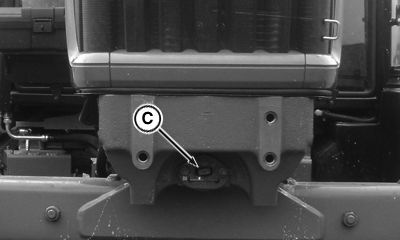

C - 2WD Axle Pivot Pin

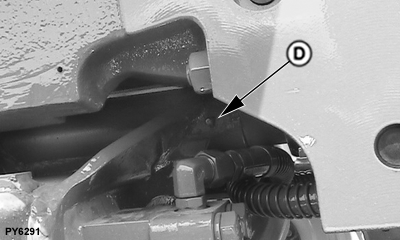

D - 2WD Rear Pivot Jerk

Lubricate MFWD front pivot (A) and rear pivot (B) with several shots of multipurpose grease. Adjustable axle pivot pin (C) also requires lubrication of the front and rear pivot bushing jerks with multipurpose grease. (See Fuels, Lubricants and Coolant section.)
