Lubricate Front Axle Greasing Points

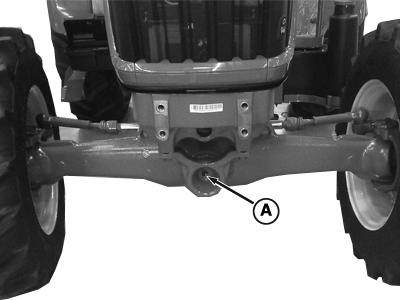

APY10353-UN-25OCT18

.

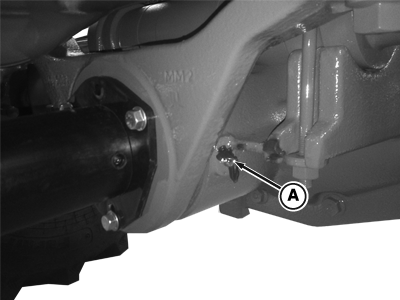

APY10354-UN-25OCT18

.

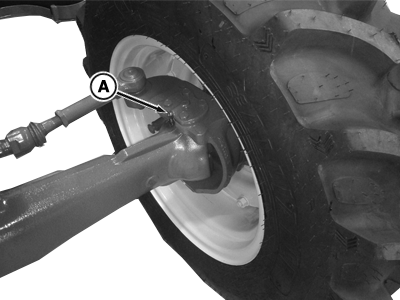

APY10355-UN-25OCT18

Both Side

A - Greasing Points

Apply several shots of multi-purpose grease (see Grease, in Section 100) to trunnion.

NOTE: Daily service is necessary when operating in wet and muddy conditions.

Greasing too frequently can cause seal fatigue.
