Tighten Wheel Bolts—Rear Axle

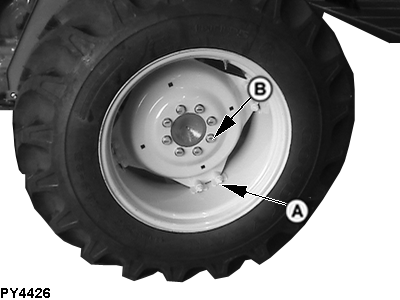

PY4426-UN-15JUN06

A - Rear Wheel Rim-to-Disk Bolts

B - Rear Wheel Disk-to-Hub Bolts

Tighten bolts (A and B) to specifications.

Item	Measurement	Specification
Rear Wheel Rim-to-Disk Bolts (dry) (A)	Torque	245 N˙m (180 lb-ft)
Rear Steel Wheel Disk-to-Hub Bolts (lubricated with J20) (B)	Torque	490 N˙m (361.4 lb-ft)
