Tractor Storage

PY4442-UN-12DEC05

PY4168-UN-12DEC05

PY4169-UN-12DEC05

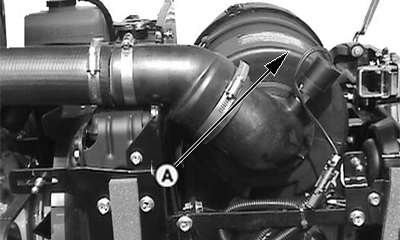

A - Air Cleaner

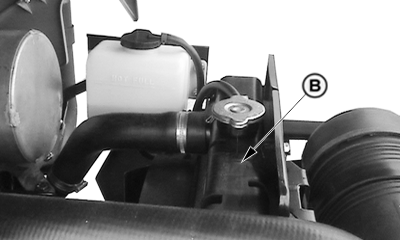

B - Cooling System

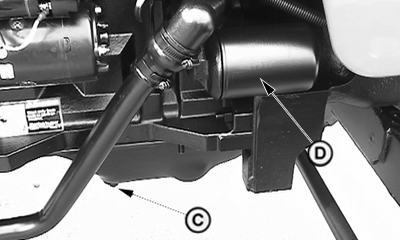

C - Engine Oil Drain Plug

D - Engine Oil Filter

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration.

1. Service air cleaner (A). (See Service Air Cleaner in Service section.)

2. If coolant has been in tractor for two years, flush cooling system (B). (See Flush Cooling System in Service section.) Add 50 percent antifreeze water mixture. Test coolant for adequate cold weather protection.

3. Change engine oil and filter (D). (See Change Engine Oil and Filter in Service—250 Hours section.)

4. Drain fuel and add back 4 L of fuel. Then add 0.4 L of corrosion inhibitor (AR41870).

5.
   PY7304-UN-28JUN07

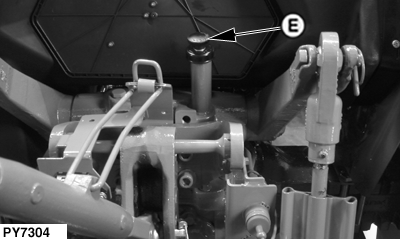

   E - Transmission-Hydraulic System Fill Port

   Add 0.25 L of corrosion inhibitor (AR41870) to transmission-hydraulic system fill port (E).

---




6. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.

7.
   PY7080-UN-28JUN07

   Fuel Tank


   PY7305-UN-28JUN07

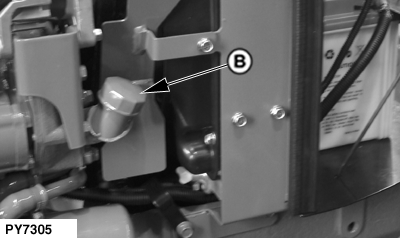

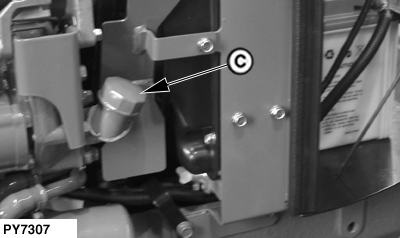

   Engine Oil Fill


   PY6024-UN-28JUL06

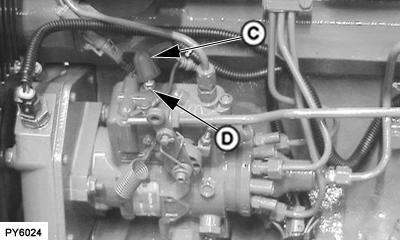

   Fuel Injection Pump

   A - Fuel Tank Filler Cap

   B - Engine Oil Filler

   C - Boot

   D - Fuel Shut-off Solenoid Wiring Lead

   Add 0.5 L more inhibitor to fuel tank at filler cap (A).

---




8. Add 0.5 L inhibitor to engine oil at filler (B).

9. Remove boot (C) and disconnect fuel shut-off solenoid wiring lead (D). This will prevent engine from starting while cranking.

10. Remove air intake hose at manifold. Pour 0.1 L inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

11. Loosen alternator/fan belt after they have cooled.

12. Remove and clean battery. Store in a cool, dry place. Keep it charged.¹

13. Tie or block clutch pedal in the disengaged position.

14. Coat exposed bare (no paint) metal surfaces with grease or a corrosion inhibitor (AR41870).

15.
    PY7306-UN-28JUN07

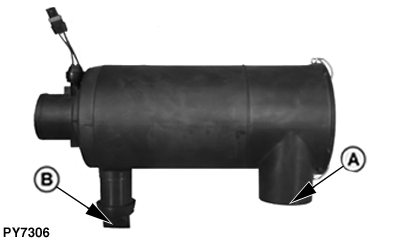

    Air Cleaner


    PY7307-UN-28JUN07

    Engine Oil Fill


    PY7308-UN-28JUN07

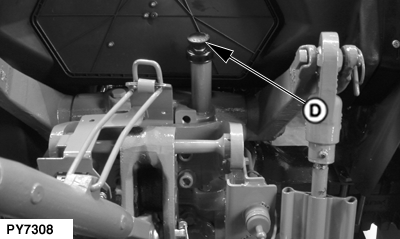

    Hydraulic Fill Port

    A - Air Cleaner Inlet Hole

    B - Crankcase Filler

    C - Dust Unloader Valve

    D - Hydraulic Oil Filler Port

    Use tape to seal air inlet hole (A), dust unloader valve (C), exhaust pipe, crankcase filler (B), fuel caps, and transmission-hydraulic system filler cap (D).

---




16. Cover dash with opaque material to prevent gauges from fading.

17. Raise tires off ground. Protect them from heat and sunlight.

18. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

19. If tractor must be stored outside, cover it with a waterproof material.
