Seven-Terminal Outlet
PY4028-UN-17JUL04
PY5606-UN-06MAR07

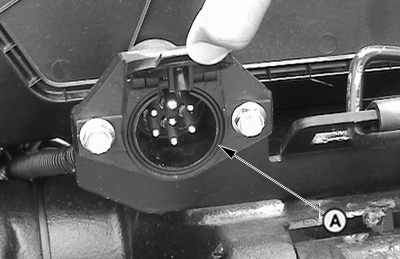

A - Seven-Terminal Outlet
Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.NOTE: Matching plug is available through your John Deere dealer.
|

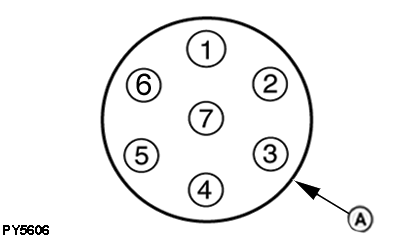

Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Ground |
Black |
|
2 |
Flood Lamp |
Purple |
|
3 |
Left Turn |
Dark Green |
|
4 |
Reserved/Brake Light |
Red |
|
5 |
Right Turn |
Dark Green |
|
6 |
Tail Lamp |
Gray |
|
7 |
Accessory |
Red |
|
AH98466,00009C6-19-20080814 |
