Tighten Bolts—MFWD Axle

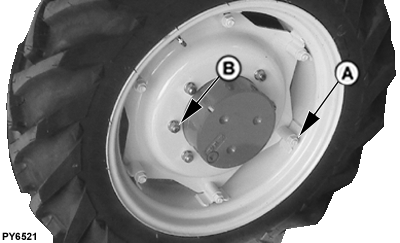

PY6521-UN-06NOV06

Tighten Bolt

A - MFWD Wheel Rim-to-Disk Nuts

B - Rear Wheel Disk-to-Hub Nuts

Tighten hardware in the following locations to specification:

Item	Measurement	Specification
MFWD Wheel Rim-to-Disk Nuts	Torque	245 N.m (180 lb.ft)
Rear Wheel Disk-to-Hub Nuts	Torque	310 N.m (228 lb.ft)
