Fuel System Components
PY4437-UN-03JAN05
PY5874-UN-29JUN06

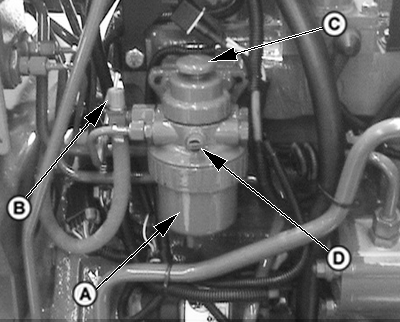

A - FuelGard™ fuel filter
B - Fuel Shut-Off Valve
C - Priming Pump
D - Bleed Screw

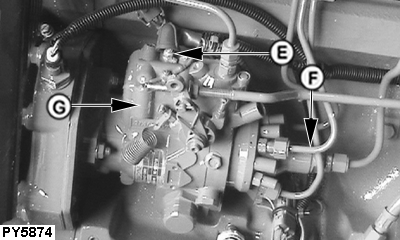

E - Electric Fuel Shut-Off
F - Fuel Injection Lines
G - Injection Pump
|
FuelGard is a trademark of Deere & Company. |
PU00210,00001F6-19-20060630 |
