Drain Water and Sediment From Fuel Tank and Fuel Filter

1. NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.


   PY4412-UN-31DEC04


   PY4353-UN-01JAN05

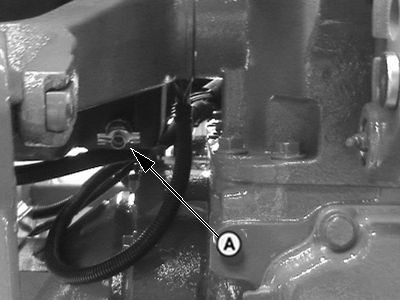

   A - Fuel Tank Fitting

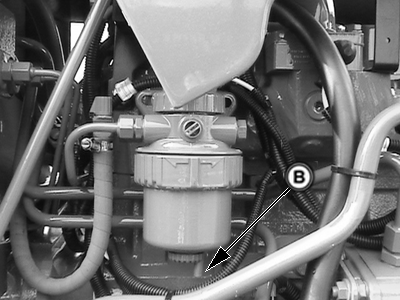

   B - Fuel Filter Drain

   Open fuel tank fitting (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten fitting closed when clear fuel runs from fitting.

---




2. Open fuel filter drain (B) to bleed accumulated moisture and sediment from filter. Tighten drain when clear fuel runs from drain.
