Replace Tail Light and Warning Light Bulbs

PY7302-UN-28JUN07

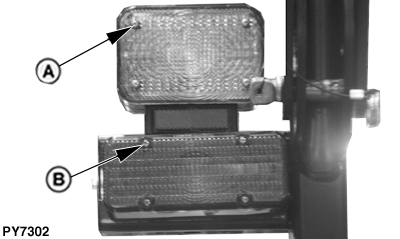

Tail Lights and Warning Lights

A - Warning Light Cap Screws (2 used)

B - Tail Light Cap Screws (2 used)

1. Remove screws (A or B).

2. Remove lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble light.
