Check Transmission-Hydraulic System Oil Level

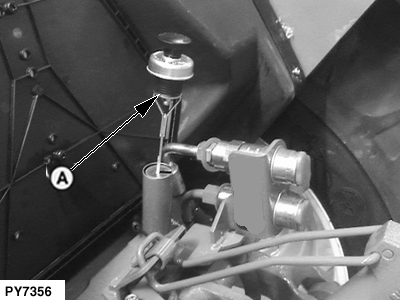

  1. PY7356
    PY7356-UN-01AUG07

    A - Transmission-Hydraulic Oil Dipstick

    Remove dipstick (A) and wipe it clean. Insert dipstick fully. Oil level should be between full mark and end of dipstick.


  2. Add oil if level is low. (See Anti-Chatter Transmission/Hydraulic Oil in Fuels, Lubricants and Coolant section.)

PY80265,00002C7-19-20070801
