Extend/Retract Cylinder—SCV II (If Equipped)

PY6445-UN-06NOV06

PY6487-UN-13MAR07

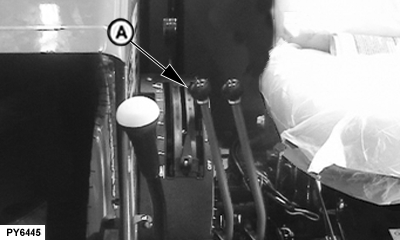

A - SCV II Control Lever

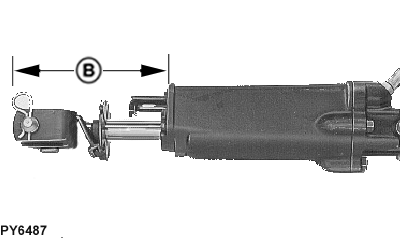

B - Extend and Retract Cylinder

Extending Cylinder

Moving lever (A) rearward against spring pressure will extend a cylinder connected to the SCV II coupler receptacles.

Retracting Cylinder

Moving lever (A) forward against spring pressure will retract cylinders connected to the couplers II.
