Check Coolant Level

TS281
TS281-UN-15APR13

PY4121
PY4121-UN-07DEC05

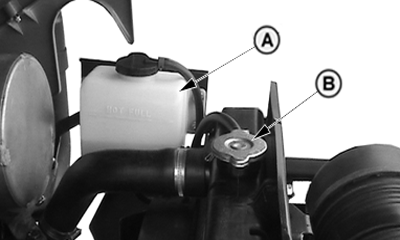

A - Coolant Tank

B - Radiator Cap

CAUTION: Only remove radiator cap (B) when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

IMPORTANT: Periodically check coolant level in radiator. If cap should become defective, coolant would not be drawn from recovery tank, and could cause the engine to overheat. Replace cap as necessary.

  1. Check level in coolant tank (A).

  2. If engine is cool and level is below “LOW” add coolant to recovery tank to bring to “LOW”. (See Fuels, Lubricants and Coolant section.)

SA61034,00001DB-19-20080222
