Engine Cooling System Components

PY4161-UN-28AUG04

PY7097-UN-28JUN07

PY7098-UN-28JUN07

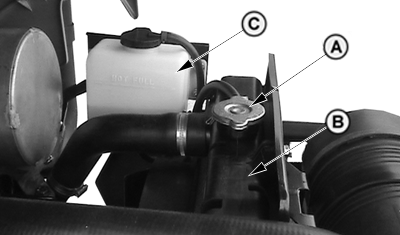

A - Radiator Cap

B - Radiator

C - Coolant Recovery Tank

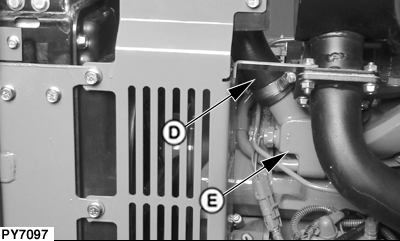

D - Upper Radiator Hose

E - Thermostat Housing

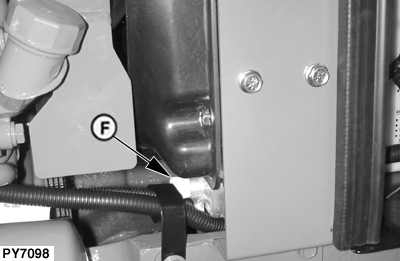

F - Radiator Drain

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

The tractors utilize a remote coolant recovery tank (C). Make-up coolant is added to the coolant recovery tank (C) rather than directly to the radiator (B).
