Connect Cylinder Hoses

CAUTION:

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

  1. Remove dust caps from hose end.

  2. PY6440
    PY6440-UN-29JUN07

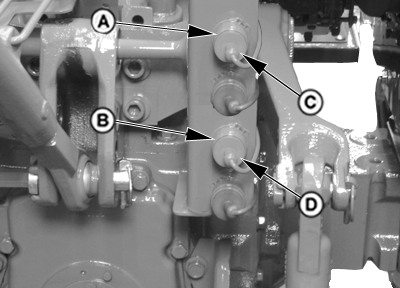

    A - Coupler II Receptacle (If Equipped)

    B - Coupler I Receptacle

    C - Dust Plug (Black) (If Equipped)

    D - Dust Plug (Red)

    Pull dust plug (C) or (D) from couplers.


  3. Make sure hose end and coupler receptacles are clean.

  4. Check hoses to see which is used for extending cylinder. This hose must be connected to a coupler receptacle (A) or (B) in order for cylinder to extend when SCV levers are moved rearward or inward.

  5. CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses. See your John Deere dealer.

    PY6441
    PY6441-UN-06NOV06

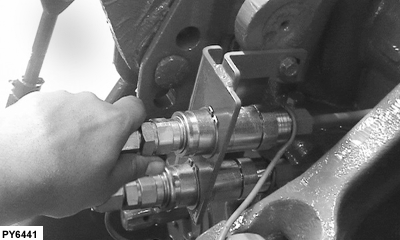

    Connect SCV

    To connect each hose, push hose tip firmly into coupler receptacle. Pull lightly on hose to make sure positive connection was made.
