Connect Single-Acting Cylinder

PY6442-UN-29JUN07

PY6443-UN-06NOV06

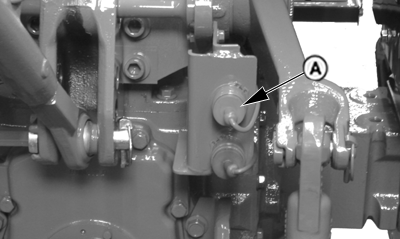

A - SCV I Outlet

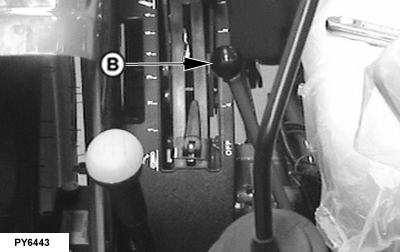

B - SCV I Control Lever

In order for lever (B) to work properly, a single-acting cylinder should be connected only to SCV I Outlet in the extend position (top coupler) (A).

IMPORTANT: Volume of oil required to extend cylinder must not lower transmission-hydraulic oil level below lower sight glass. Check oil level with cylinder fully extended. (See Check Transmission-Hydraulic System Oil Level in Service - 50 Hours section.)

Push SCV I control lever full forward to use “float” position to lower single-acting cylinder.

“Float” position allows a cylinder to extend and retract freely and uses no engine power.
