Adjust Toe-In (MFWD Tractor)

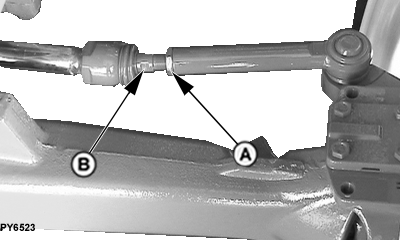

PY6523-UN-06NOV06

A - Tie Rod Jam Nuts

B - Inner Rod

1. Loosen jam nuts (A) on both ends of tie rod.

2. Adjust both sides equally by rotating the inner rod (B) to lengthen or shorten tie rod, as needed to obtain toe-in of less than 16 mm (5/8 in.).

   Tie Rod Rotation	Approximate Change
   1/8 turn	4 mm (3/16 in.)
   1/4 turn	8 mm (3/8 in.)
   1/2 turn	16 mm (5/8 in.)

3. Tighten jam nuts to specification.

   Item	Measurement	Specification
   MFWD Tie Rod Jam Nuts	Torque	120 N˙m (88 lb-ft)
