Tow Tractor

1. CAUTION: NEVER tow tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.

   IMPORTANT: DO NOT tow any tractor faster than 16 km/h (10 mph) if oil temperature is below 0°C (32°F).

   To avoid damaging transmission-hydraulic system, observe the following precautions:

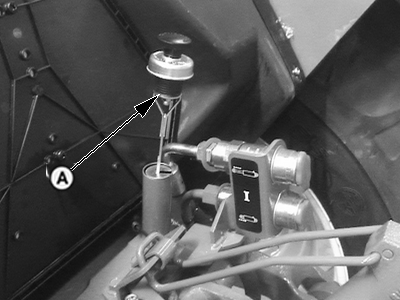

   PY4399-UN-31DEC04

   A - Transmission/Hydraulic Oil Dipstick

   Be sure transmission-hydraulic system oil is to the full mark on the dipstick (A). If the tractor is to be towed with the front wheels raised, add 1 liter of oil for each 90 mm (3-1/2 in.) the wheels are raised. DO NOT raise front wheels more than 305 mm (12 in.) above ground.

   NOTE: After transporting tractor, drain oil that was added for towing.

---




2. Make sure the MFWD is disengaged.

3. Make sure the differential lock is disengaged.

4. Make sure range and gear levers are in neutral.
