Use Turn Signals

PY3085-UN-06JUN06

PY4051-UN-04AUG04

PY5700-UN-06JUN06

A - Turn Signal Lever

B - Right-Hand Lights

C - Left-Hand Lights

D - Turn Indicator Lights

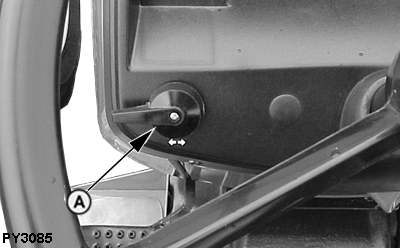

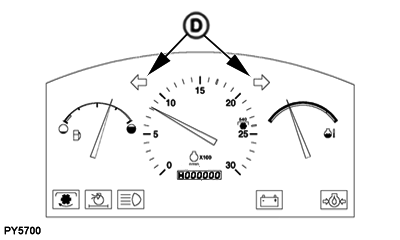

Move turn signal lever (A) down to indicate left-hand turn or up for right-hand turn. Indicator lights (D) will flash to signal turn direction.

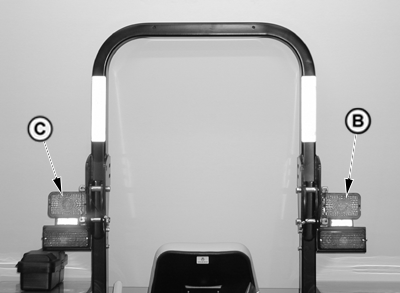

When lever is up, front and rear facing lights on right-hand side (B) will flash while left-hand lights (C) glow steady. Left-hand lights flash and right-hand lights glow steady when lever is down.

NOTE: Be sure to manually return lever to center position after turning.
