Adjust Ride Comfort

PY7065-UN-28JUN07

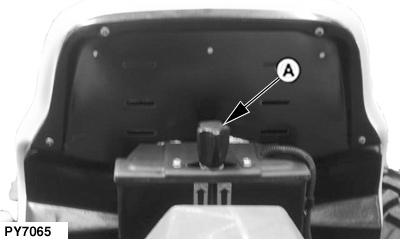

A - Adjustment Knob

Adjustment knob is located behind seat.

Weight markings are given on the rear of seat. Turn adjustment knob (A) for a firm or soft ride. Weight markings on the rear of seat are suggested adjustment settings where the seat suspension will function properly relative to operator's weight.
