Replace Fuel Filter

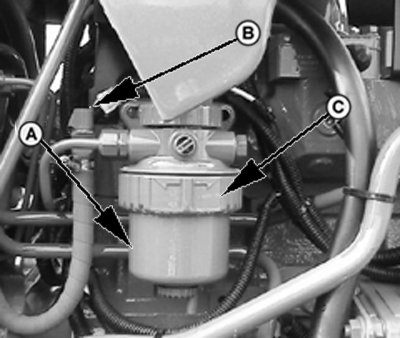

PY4429-UN-03JAN05

A - FuelGard™ Fuel Filter Element

B - Fuel Shut-Off

C - Retaining Ring

Replace FuelGard™ filter element (A) at least once a year.

1. Close fuel shut-off (B).

2. Remove retaining ring (C) and filter.

3. Install new filter with retaining ring hand tight.

4. Open fuel shut-off and bleed air from filter. (See Bleed Fuel System in Service section.)
