Stop the Engine

  1. PY8221

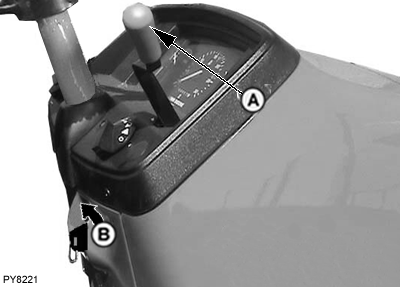

    PY8221-UN-05MAR08

    A - Hand Throttle

    B - Key Switch OFF

    Pull hand throttle (A) back to slow idle position. Allow engine to idle for one to two minutes.


  2. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

    Turn key switch to the OFF position (B).

    CAUTION: Remove key from key switch to prevent operation by untrained personnel.

SA61034,0000281-19-20080305
