Keep ROPS Installed Properly

PY4046-UN-03AUG04

PY7325-UN-03JUL07

PY4049-UN-22SEP06

A - ROPS Crossbar

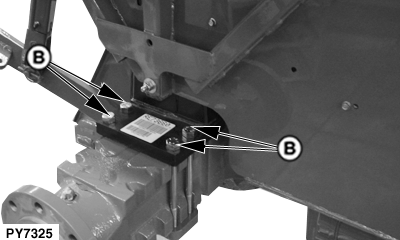

B - Mounting Bolts (8 used)

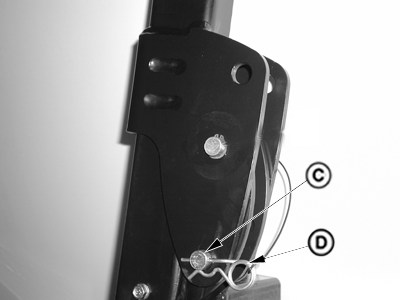

C - Headed Pins

D - Quick-Lock Pin

CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in anyway altered by welding, bending, drilling, or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing Roll-Over Protective Structure (ROPS) (A), mounting bolts (B) should be tightened to specification.

Item	Measurement	Specification
ROPS Mounting Bolts	Torque	660 N˙m (487 lb-ft)

Inspect ROPS mounting hardware every 250 hours for proper torque or replacement.

TO LOWER ROPS CROSSBAR (A):

1. Remove quick-lock pins (D) and headed pins (C) on both side of ROPS.

2. Lower crossbar (A) of ROPS onto stops.

3. Reinstall pins (C and D) into bottom holes in ROPS to lock crossbar down.

CAUTION: Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS folded (e.g. to enter a low building) drive with extreme caution and DO NOT use seat belt.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

PY4048-UN-03AUG04

A - ROPS Crossbar

TO PUT ROPS IN OPERATING POSITION:

Lift crossbar (A) of ROPS to vertical position. Install pins (C) and quick-lock pins (D) into bottom holes in ROPS to lock in position.
