Operate Tractor PTO

1.
   PY8016-UN-04JUL08


   PY5711-UN-30MAY06

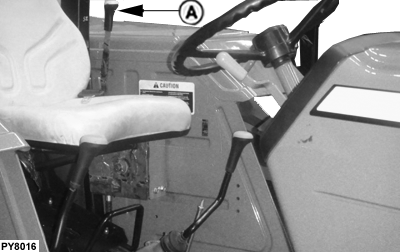

   A - PTO Control Lever

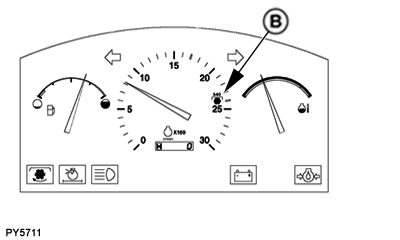

   B - PTO Engaged Indicator

   Move control lever (A) inward and forward to engage PTO. PTO indicator (B) will light when PTO is engaged.

   IMPORTANT: A warning alarm will sound for a few seconds if you leave seat with PTO engaged.

---




2. CAUTION: Turn key OFF to stop engine and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

   Pull control lever back to disengage PTO.
