Adjust PTO Clutch Operating Cable

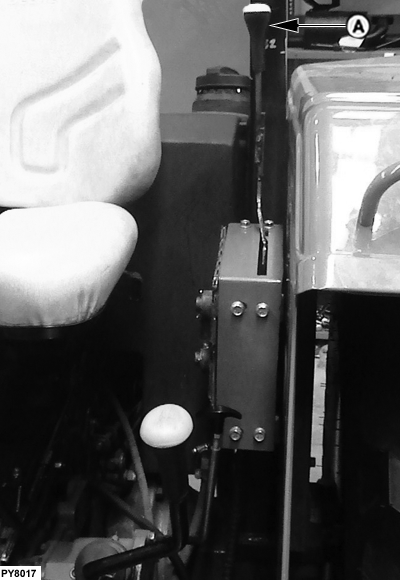

PY8017-UN-04JUL08

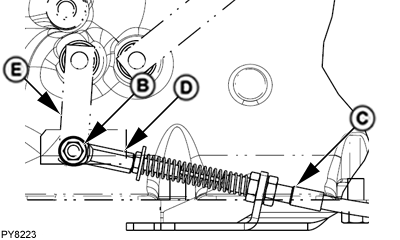

PY8223-UN-06MAR08

A - PTO Clutch Lever

B - Spring Lock Screw

C - Cable

D - Yoke

E - PTO Lever

1. Move PTO lever (A) to rear (disengaged) position.

2. Remove spring lock screw (B).

3. Rotate PTO lever (E) counter clockwise until free play is removed (slight resistance encountered).

4. Adjust yoke (D) until spring lock screw can be installed through yoke and lever.

5. Install spring lock screw through yoke and lever.
