Check and Adjust Clutch Pedal Free Play

PY6405-UN-23OCT06

PY6016-UN-27JUL06

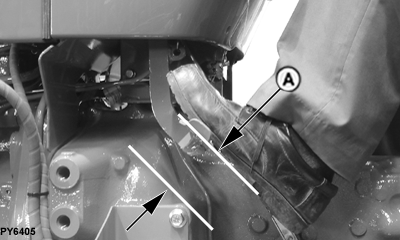

A - Clutch Pedal Free Play

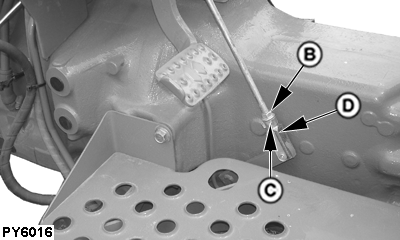

B - Lock Nut

C - Clip Pin

D - Clevis

Measure free play (A) at top of pedal stroke. Adjust linkage to obtain 20 mm to 25 mm free play.

To adjust linkage, loosen lock nut (B), unlatch the connecting clip pin (C) and remove. Rotate clevis (D). After making adjustment, replace clip, and recheck free play. When free play is correct, tighten lock nut.
