Change Transmission-Hydraulic Oil and Filter

PY6278-UN-09OCT06

Transmission Drain Plug

PY6277-UN-09OCT06

Drop Housing Drain Plug

PY6542-UN-07NOV06

PY4434-UN-26JUL07

Dipstick

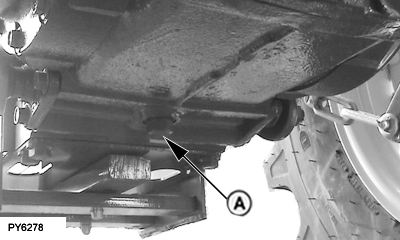

A - Transmission Case Drain Plug

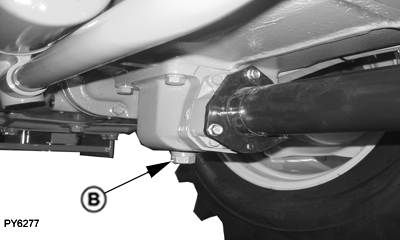

B - MFWD Drop Housing Drain Plug

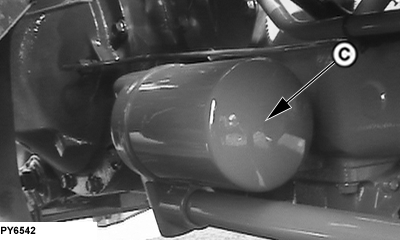

C - Oil Filter

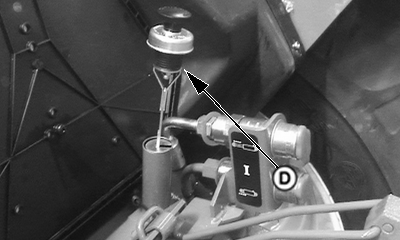

D - Dipstick

1. Lower rockshaft to remove trapped oil.

2. NOTE: The approximate transmission case oil capacity is 38 L (10 gal) for 2-WD tractors and 39 L (10.30 gal) for MFWD tractors.

   Remove drain plug (A) from transmission case and drain out oil. Dispose of waste oil properly.

3. If equipped with MFWD axle, also remove drain plug (B) in drop housing.

4. Replace filter (B) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

5. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

   Item	Measurement	Specification
   Transmission Oil (2-WD)	Capacity	38 L (10 gal)
   Transmission Oil (MFWD)	Capacity	39 L (10.30 gal)

6. Check oil level at dipstick (D) after filling, and again after operating for five minutes.
