Clean Transmission-Hydraulic Pickup Screen

  1. PY7315
    PY7315-UN-03JUL07

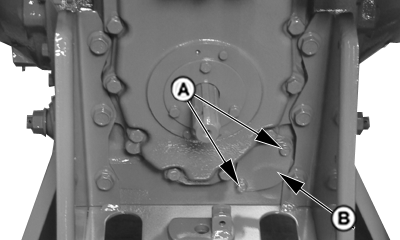

    A - Cap Screws

    B - Screen Cover

    Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

    NOTE: The approximate transmission case oil capacity is 38 L (10 gal) for 2-WD tractors and 39 L (10.30 gal) for MFWD tractors.


  2. Remove two cap screws (A) and remove screen cover (B).

  3. Remove screen and examine it for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

  4. Carefully install screen so the front of screen is inserted in hole at front of differential case.

  5. Fill system with transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

  6. PY4447
    PY4447-UN-04JAN05

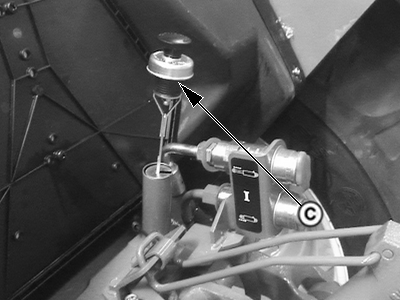

    C - Transmission-Hydraulic Oil Dipstick

    Check oil level at dipstick (C) after filling, and again after operating for five minutes.
