Tractor Controls

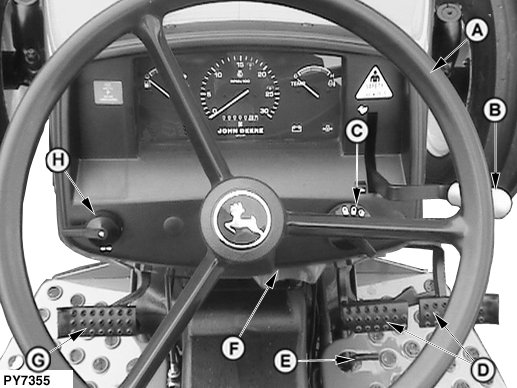

PY7355-UN-01AUG07

A - Steering Wheel

B - Hand Throttle

C - Light Switch

D - Brake Pedals

E - Foot Throttle

F - Key Switch

G - Clutch Pedal

H - Turn Signal Switch

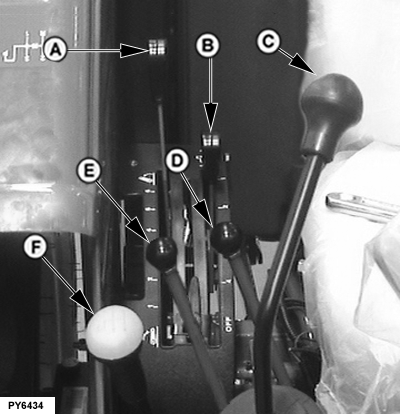

PY6434-UN-07NOV06

Right-Hand side

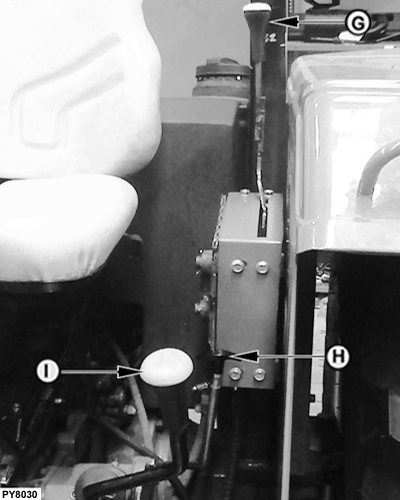

PY8030-UN-16JUL08

Left-Hand Side

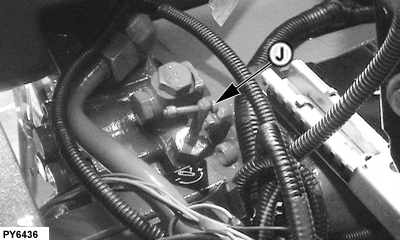

PY6436-UN-06NOV06

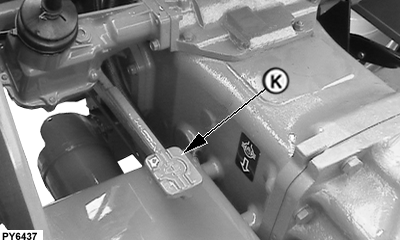

PY6437-UN-06NOV06

A - Rockshaft Position Control Lever

B - Rockshaft Draft Control Lever

C - Midmount SCV Joystick (If Equipped)

D - SCV I Lever

E - SCV II Lever (If Equipped)

F - Gear Shift Lever

G - PTO Shift Lever

H - MFWD Lever

I - Range Shift Lever

J - Rockshaft Rate-Of-Drop Knob

K - Differential Lock Pedal
