Working With Speed/Hour Meter

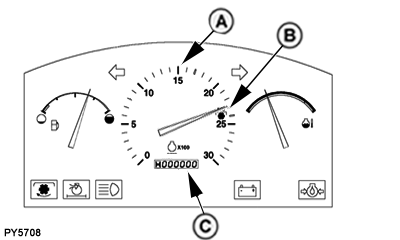

PY5708-UN-07NOV06

A - Tachometer

B - 2400 rpm Mark

C - Hour Meter

Tachometer (A) shows engine rpm, read in hundreds.

For standard 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2400 rpm mark (B).

Hour meter (C) shows hours of operation in full hours and tenths.
