Operate Transmission

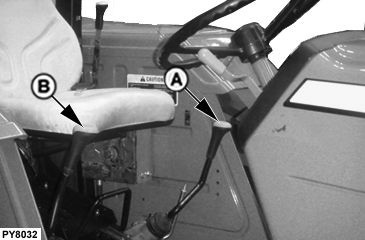

PY8032
PY8032-UN-16JUL08

A - Range Shift Lever

B - Speed Shift Lever

Range shift lever (A) provides three forward speed ranges (A, B and C).

Speed shift lever (B) provides three forward speeds and one reverse speed.

Using range and speed shift levers in different combinations, nine forward speeds and three reverse speeds can be obtained.

Range shift must be in neutral for the engine to be started.

SA61034,000063C-19-20081006
